Details
Serie: 22365
Solid carbide
n/a
| Ref. | D1 mm | L2 mm | L1 mm | Z | D2 mm |
|---|---|---|---|---|---|
|
2236501
|
1,6 (M2)
|
12
|
50
|
2
|
6
|
|
2236502
|
2
|
12
|
50
|
2
|
6
|
|
2236503
|
2,1 (M2,5)
|
12
|
50
|
2
|
6
|
|
2236504
|
2,5 (M3)
|
12
|
50
|
2
|
6
|
|
2236505
|
2,9 (M3,5)
|
12
|
50
|
2
|
6
|
|
2236506
|
3
|
12
|
50
|
2
|
6
|
|
2236507
|
3,3 (M4)
|
12
|
50
|
2
|
6
|
|
2236508
|
3,7 (M4,5)
|
12
|
50
|
2
|
6
|
|
2236509
|
4
|
12
|
50
|
2
|
6
|
|
2236510
|
4,2 (M5)
|
12
|
50
|
2
|
6
|
|
2236511
|
5 (M6)
|
12
|
50
|
2
|
6
|
|
2236512
|
6
|
12
|
50
|
2
|
6
|
|
2236513
|
3
|
22
|
60
|
2
|
6
|
|
2236514
|
3,1
|
22
|
60
|
2
|
6
|
|
2236515
|
3,2
|
22
|
60
|
2
|
6
|
|
2236516
|
3,3 (M4)
|
22
|
60
|
2
|
6
|
|
2236517
|
3,4
|
22
|
60
|
2
|
6
|
|
2236518
|
3,5
|
22
|
60
|
2
|
6
|
|
2236519
|
3,6
|
22
|
60
|
2
|
6
|
|
2236520
|
3,7 (M4,5)
|
22
|
60
|
2
|
6
|
|
2236521
|
3,8
|
22
|
60
|
2
|
6
|
|
2236522
|
3,9
|
22
|
60
|
2
|
6
|
|
2236523
|
4
|
22
|
60
|
2
|
6
|
|
2236524
|
4,1
|
22
|
60
|
2
|
6
|
|
2236525
|
4,2 (M5)
|
22
|
60
|
2
|
6
|
|
2236526
|
4,3
|
22
|
60
|
2
|
6
|
|
2236527
|
4,4
|
22
|
60
|
2
|
6
|
|
2236528
|
4,5
|
22
|
60
|
2
|
6
|
|
2236529
|
4,6
|
22
|
60
|
2
|
6
|
|
2236530
|
4,7
|
22
|
60
|
2
|
6
|
|
2236531
|
4,8
|
22
|
60
|
2
|
6
|
|
2236532
|
4,9
|
22
|
60
|
2
|
6
|
|
2236533
|
5 (M6)
|
22
|
60
|
2
|
6
|
|
2236534
|
5,1
|
22
|
60
|
2
|
6
|
|
2236535
|
5,2
|
22
|
60
|
2
|
6
|
|
2236536
|
5,3
|
22
|
60
|
2
|
6
|
|
2236537
|
5,4
|
22
|
60
|
2
|
6
|
|
2236538
|
5,5
|
22
|
60
|
2
|
6
|
|
2236539
|
5,6
|
22
|
60
|
2
|
6
|
|
2236540
|
5,7
|
22
|
60
|
2
|
6
|
|
2236541
|
5,8
|
22
|
60
|
2
|
6
|
|
2236542
|
5,9
|
22
|
60
|
2
|
6
|
|
2236543
|
6
|
22
|
60
|
2
|
6
|

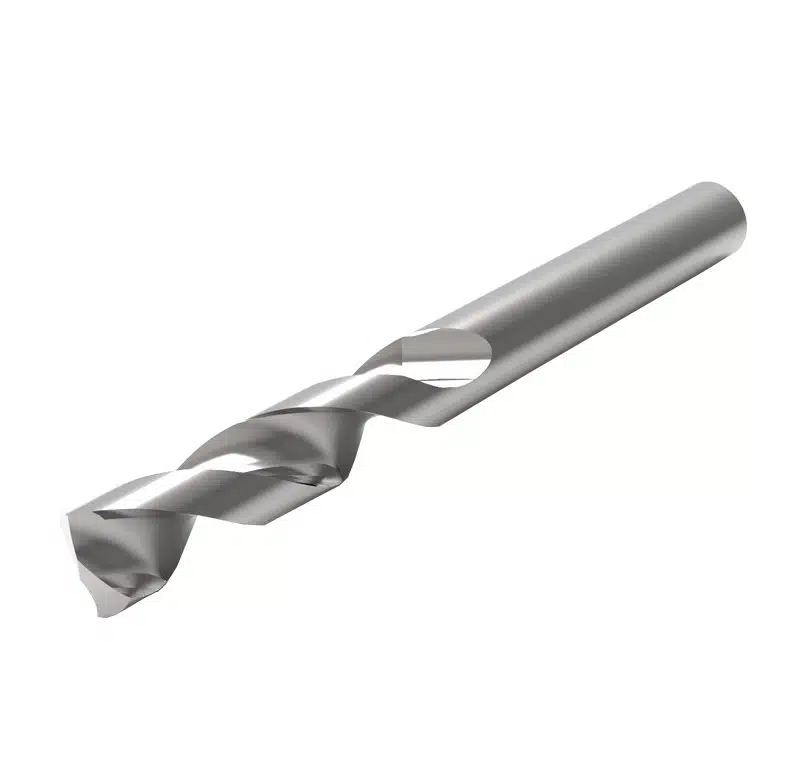

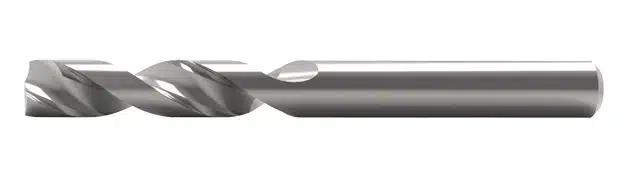

Solid carbide drill with Ø6 mm shank
Solid carbide drill designed with a shank diameter (D2) of 6 mm and a tip angle of 130º ground on all four faces, which allows good self-centering when drilling. The helixs are micropolished to facilitate chip removal. Recommended for universal use in.
( * ) Drill bits for threads pre-drilling from M2 to M6.
