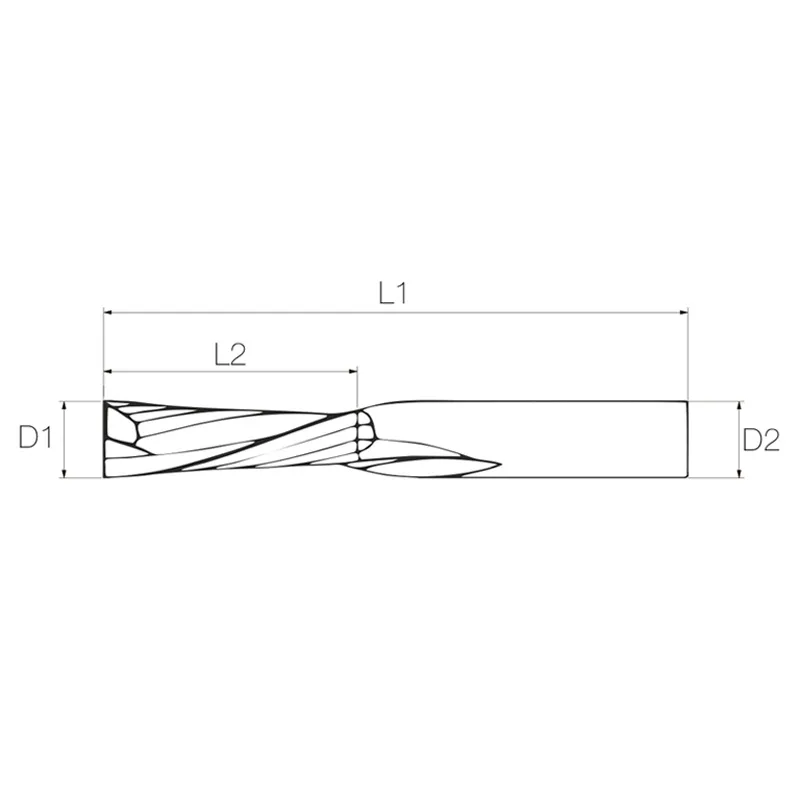

| Ref. | D1 mm | L2 mm | L1 mm | Z | D2 mm |
|---|---|---|---|---|---|
|
8262601
|
3
|
12
|
50
|
2
|
6
|
|
8262602
|
4
|
16
|
60
|
2
|
6
|
|
8262603
|
5
|
20
|
60
|
2
|
6
|
|
8262604
|
6
|
12
|
64
|
2
|
6
|
|
8262605
|
6
|
25
|
64
|
2
|
6
|
|
8262606
|
8
|
18
|
64
|
2
|
8
|
|
8262607
|
12
|
18
|
64
|
2
|
12
|

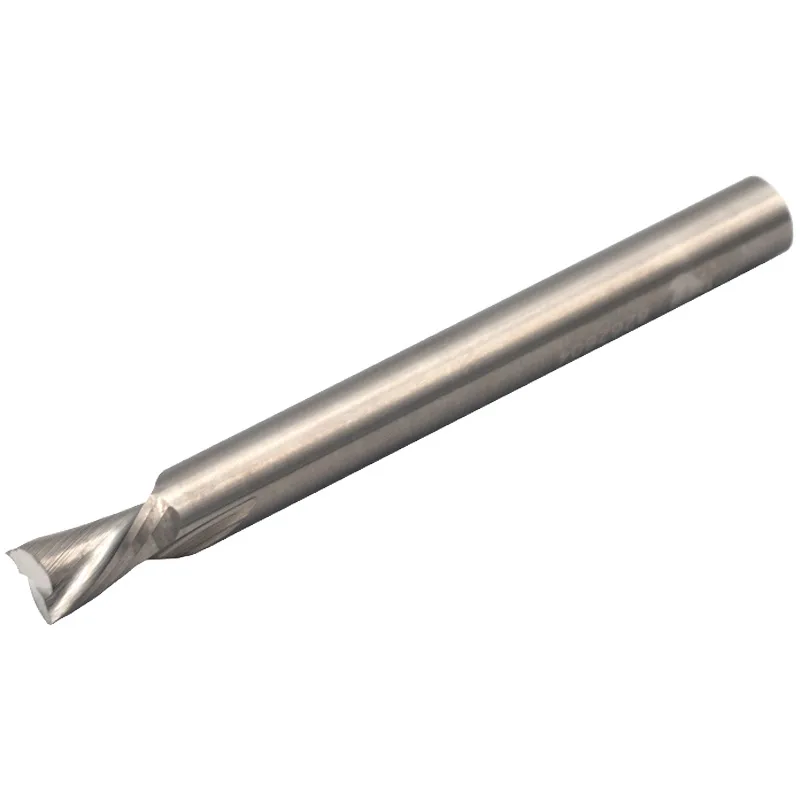

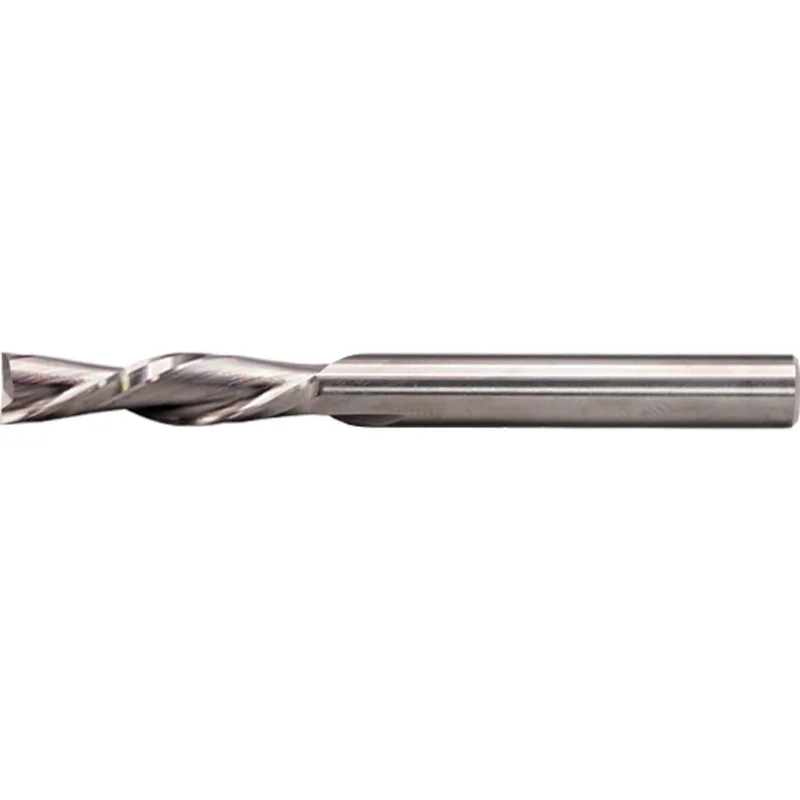

Solid carbide end mill with Z2.
Downcut series developed with high wear resistance sub-micrograin carbide. Geometry designed for trimming, grooving and pocketing getting optimal finishes and free of delamination in the upper part of the workpiece. Recommended for use in:
– Hard and soft woods. – Plywood, MDF, melamine chipboard, OSB, etc.
– Solid Surface Materials: Corian®, Krion®, Varicor ®, etc.
