Helitron Drill

Name: Helitron Drill - GRT Tools
SKU: 22405
Availability: InStock

Details

Serie: 22405

Composition:

Solid carbide

Helix:

n/a

Machinable material:

Composite

You must be a registered user to view prices and make purchases. Register here

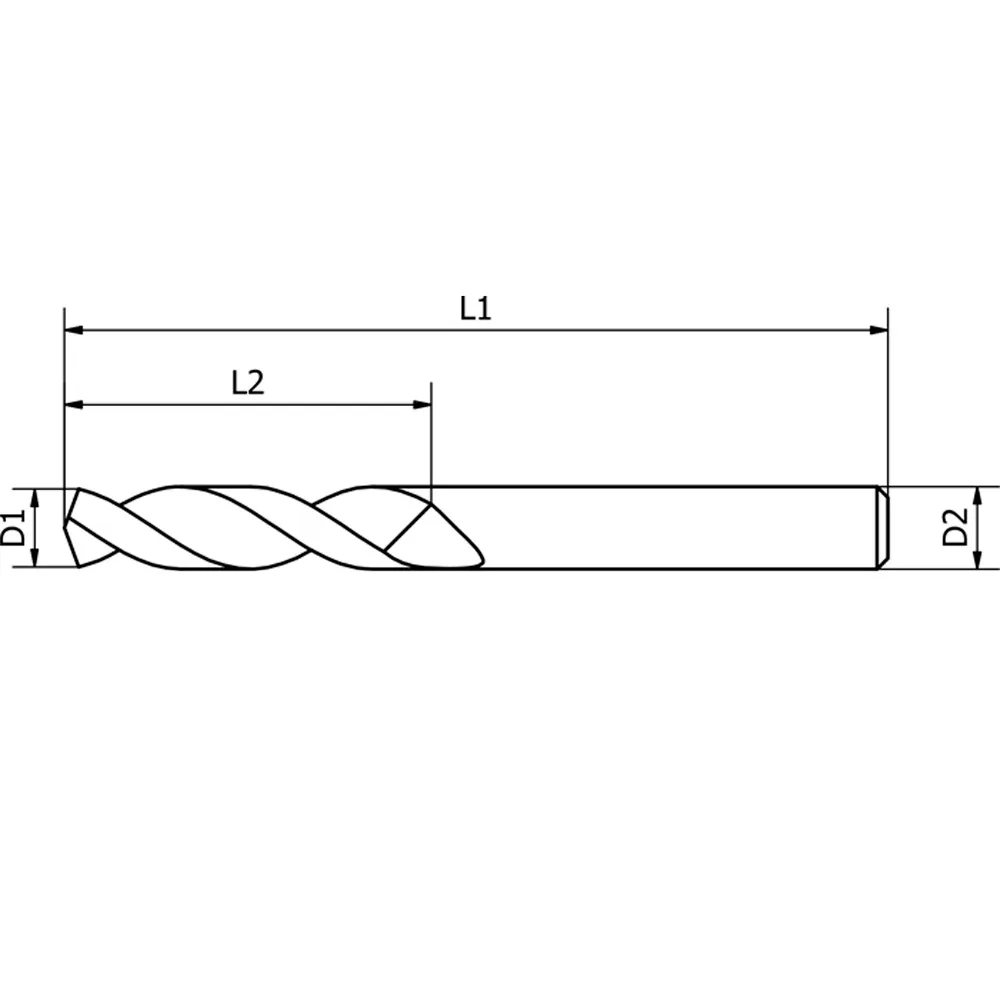

Ref.	D1 mm	L2 mm	L1 mm	Z	D2 mm
2240501	1	10	40	2	3
2240502	1,5	10	40	2	3
2240503	2	10	40	2	3
2240504	2,5	30	60	2	4
2240505	3	30	60	2	4
2240506	3,5	30	60	2	4
2240507	4	30	60	2	4
2240508	4,5	30	60	2	6
2240509	5	30	70	2	6
2240510	5,5	30	70	2	6
2240511	6	30	70	2	6
2240512	6,5	40	80	2	8
2240513	7	40	80	2	8
2240514	7,5	40	80	2	8
2240515	8	40	80	2	8
2240516	8,5	40	80	2	10
2240517	9	40	80	2	10
2240518	9,5	40	80	2	10
2240519	10	40	80	2	10
2240520	2,5	15	80	2	3
2240521	3,2	15	80	2	4
2240522	4,3	15	80	2	5
2240523	5	15	80	2	5
2240524	5,6	15	80	2	6
2240525	6,5	15	80	2	7
2240526	7,2	20	80	2	8
2240527	8,8	20	90	2	9

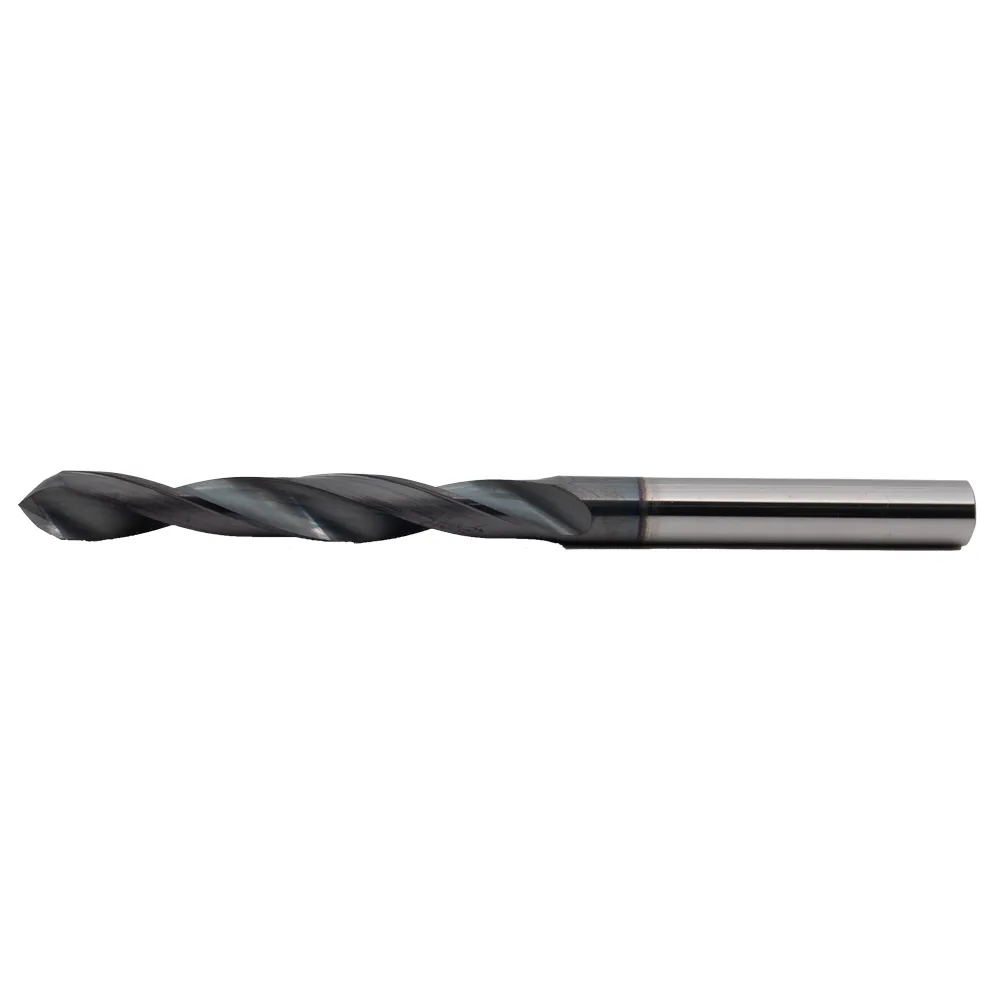

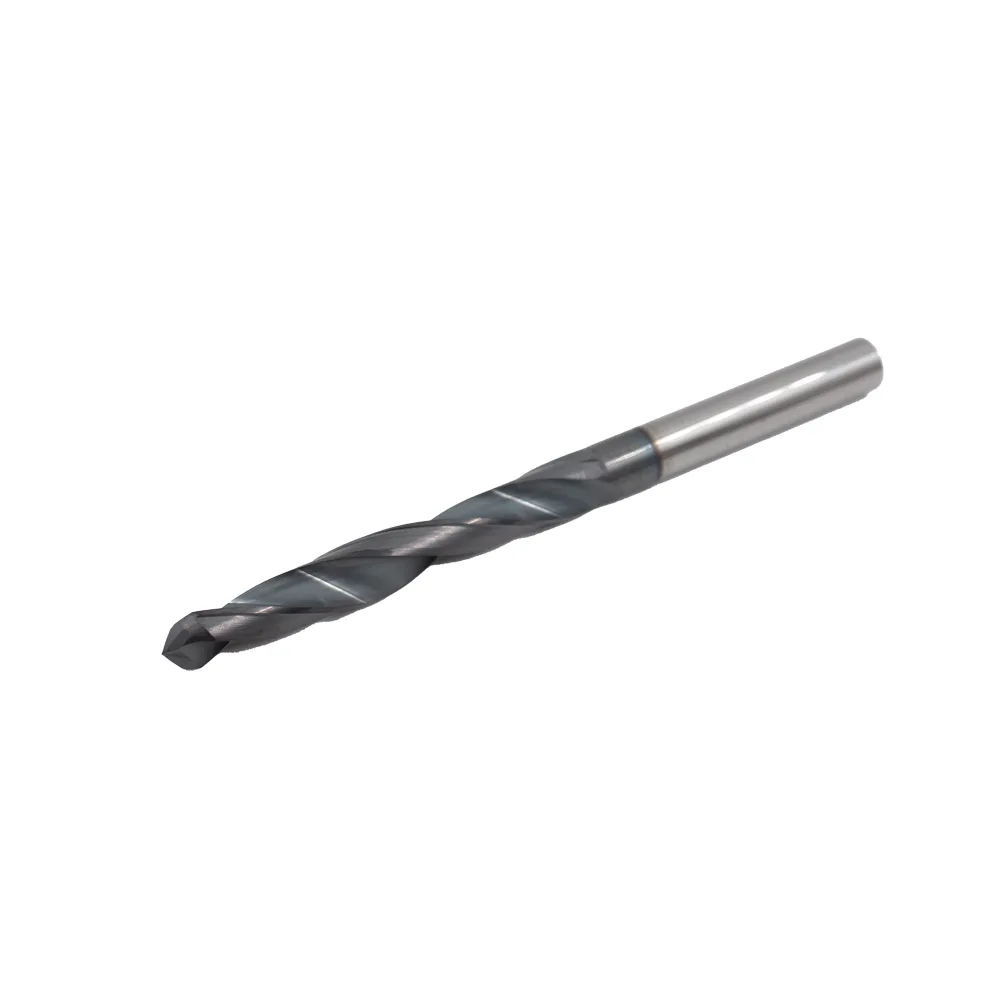

Info about this tool

Coated solid carbide drill.

Series featuring an innovative 8-facet tip geometry, which allows a significant reduction in cutting forces while preventing delamination at the drill exit.

Recommended for drilling in:

– Fiberglass (G10, G11, etc.).

– High pressure laminates (HPL, Trespa®, Formica®).

– Carbon fiber and other composite materials (fiber cement, ceramic composites, graphite, etc.).
