Details
Serie: 46385
Solid carbide
Upcut

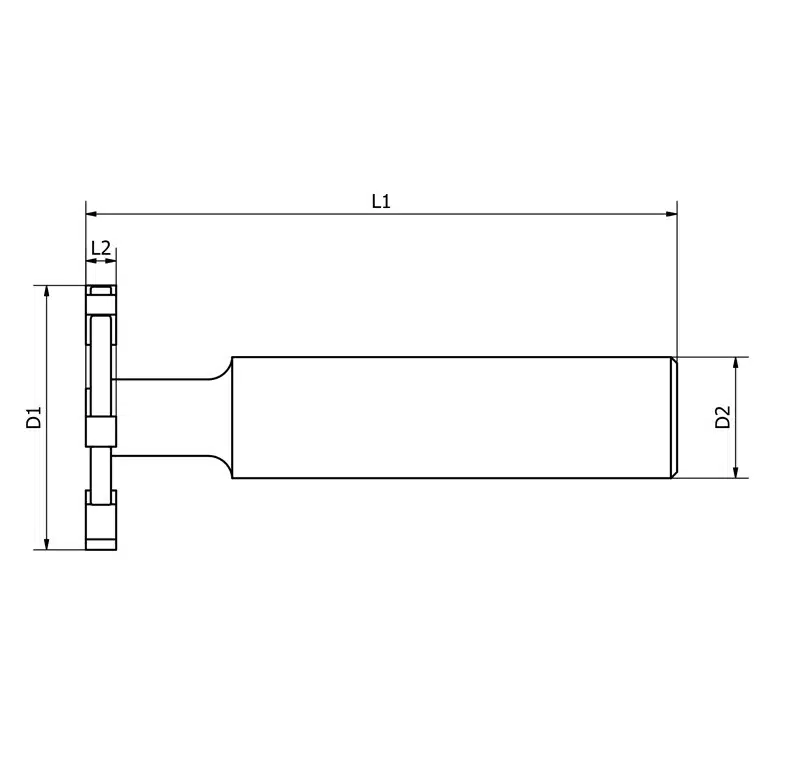

| Ref. | D1 mm | L2 mm | L1 mm | Z | D2 mm |
|---|---|---|---|---|---|
|
4638501
|
15
|
1,5
|
85
|
6
|
6
|
|
4638502
|
25
|
1,5
|
85
|
6
|
6
|
|
4638503
|
25
|
2
|
85
|
6
|
6
|
|
4638504
|
25
|
2
|
85
|
6
|
8
|
|
4638505
|
35
|
2
|
85
|
6
|
8
|
|
4638506
|
40
|
3
|
85
|
8
|
8
|
|
4638507
|
50
|
3
|
85
|
8
|
10
|

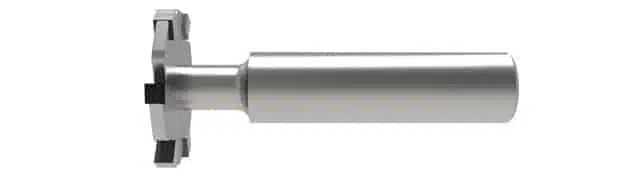

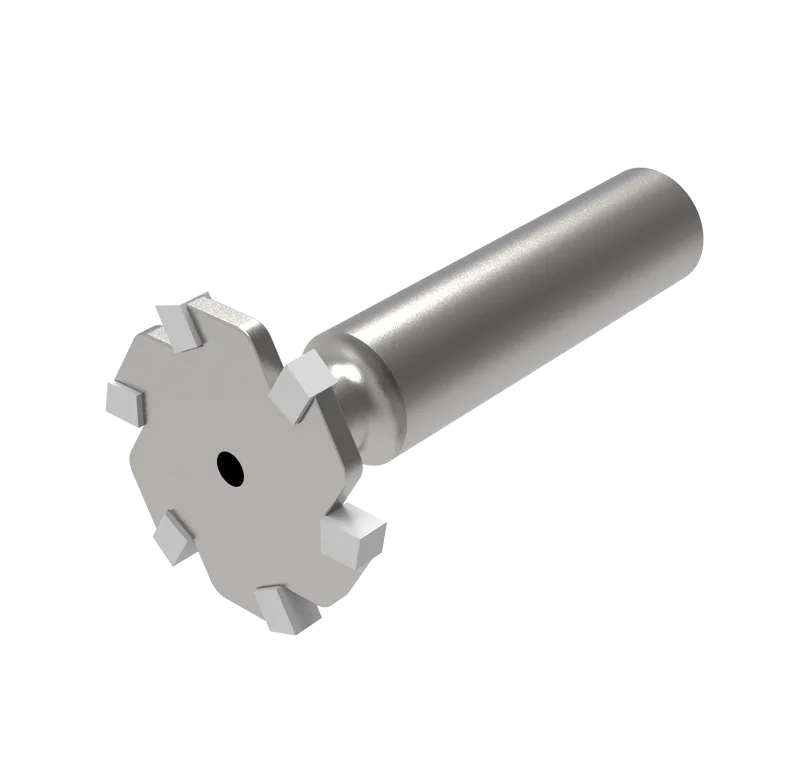

Saw end mill with shank.
Saw end mill with brazed solid carbide lates. Designed for grooving materials such as:
– Thermoplastics: PMMA, PC, PVC, PP, PE, ABS, etc.
– Wood and derivatives (MDF, chipboard, plywood, etc.).
– Aluminum and aluminum composites: Dibond®, Alucobond®, etc.
