PCD Countersink SGI

PCD Countersink SGI

Details

Serie: 83805

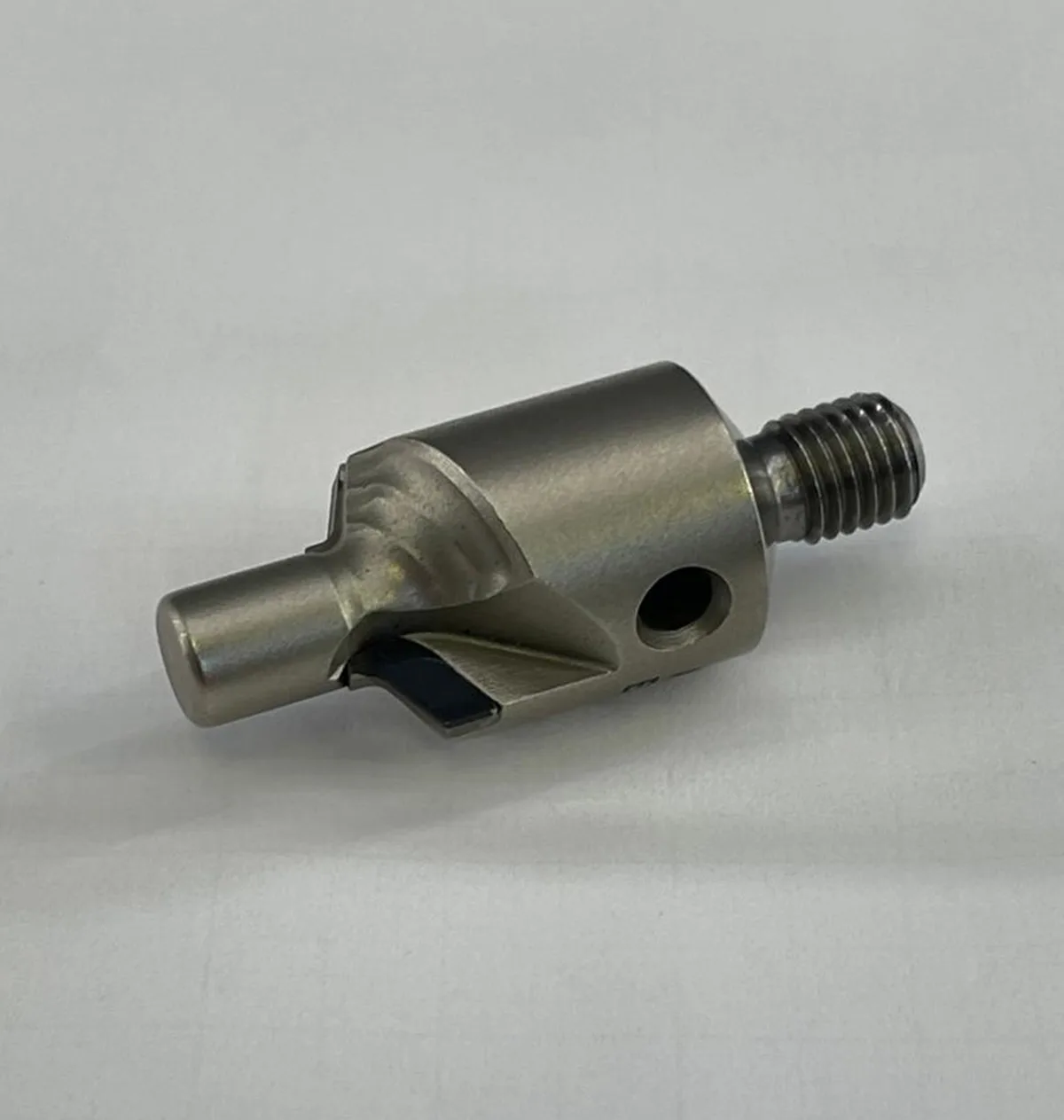

GRT Tools PCD-Countersink-SGI

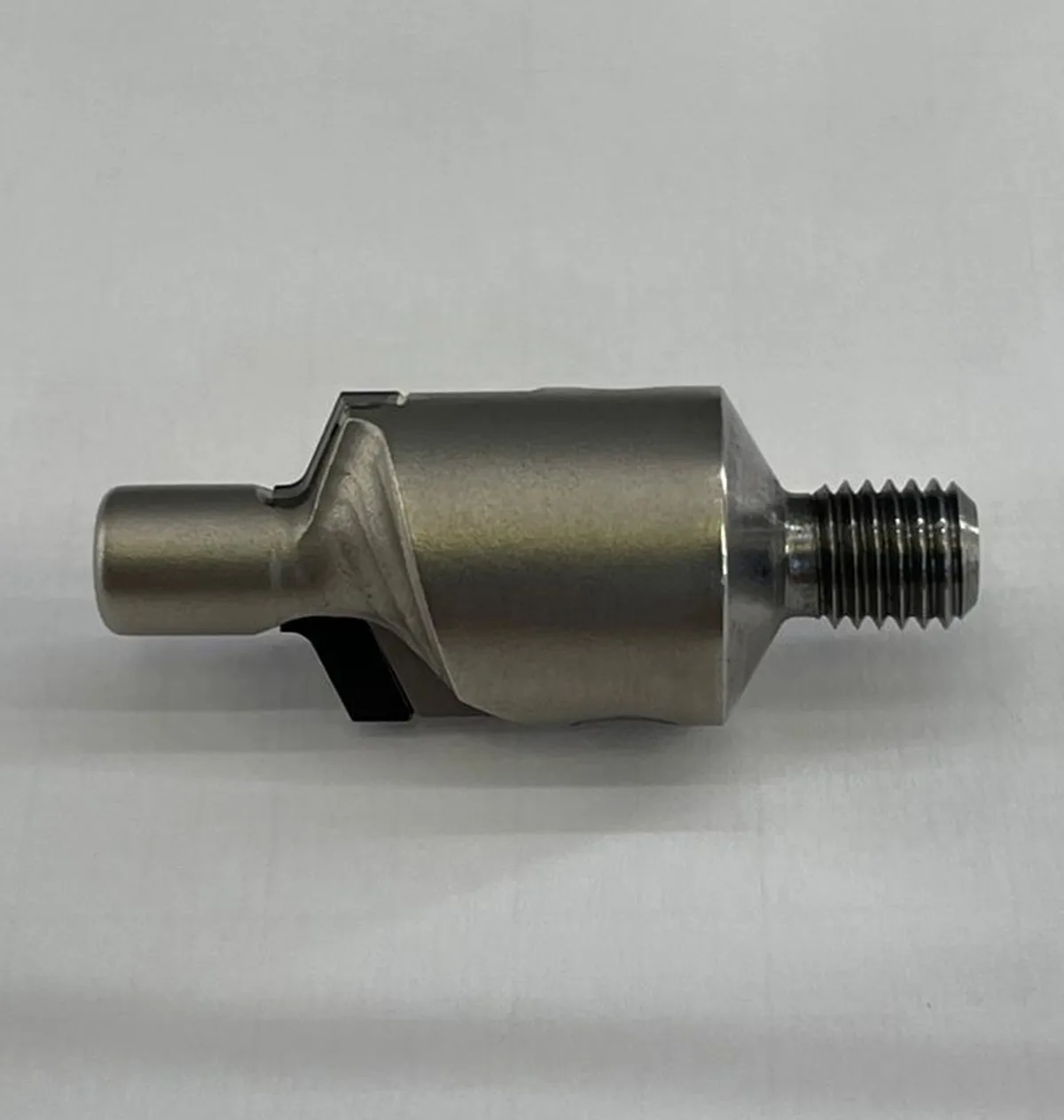

PCD-Countersink-SGI-GRT-Tools

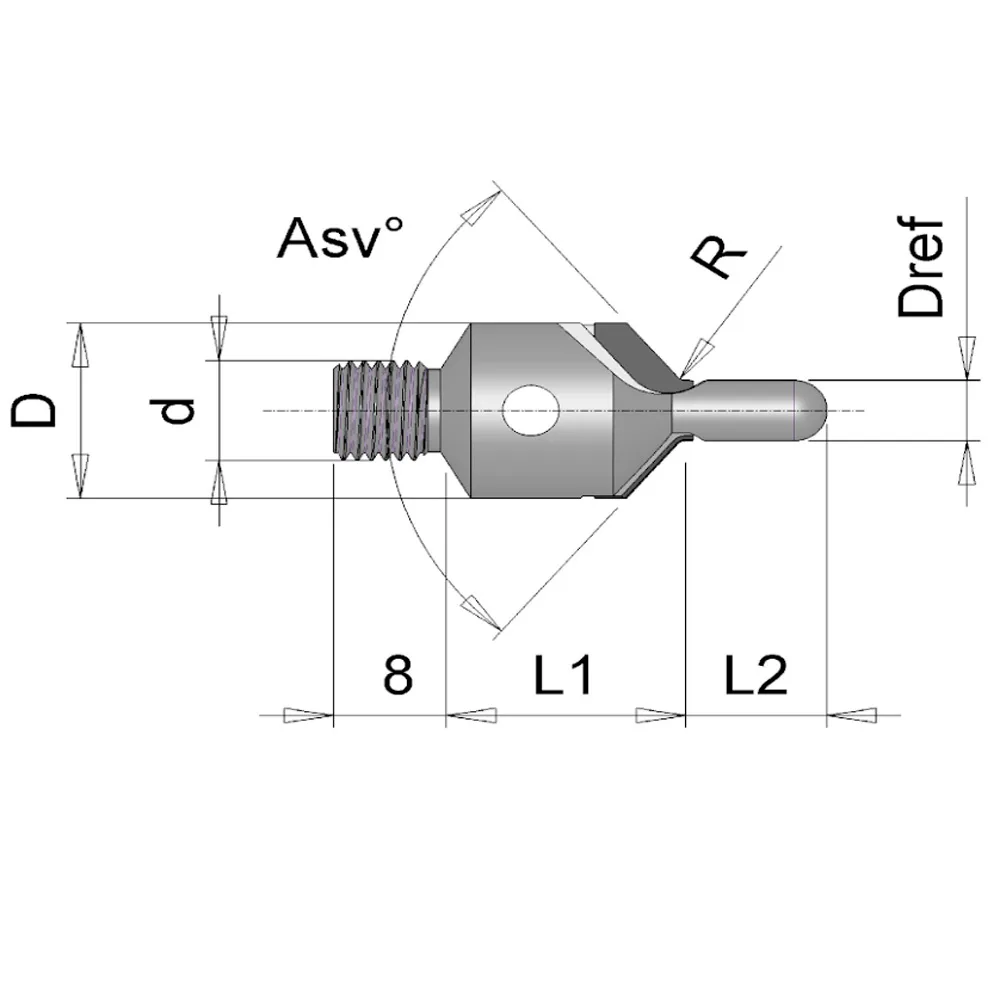

PLANO-PCD-Countersink-SGI

Composition:

Polycrystalline diamond

Helix:

n/a

Machinable material:

Aluminum Composite Non-ferrous metal

You must be a registered user to view prices and make purchases. Register here

Ref.	D1 mm	α	r mm	D2 mm	Z
8380501	10	100o	0,25	M6X1,0	2
8380502	10	100o	0,25	M6X1,0	3
8380503	10	130o	0,25	M6X1,0	2
8380504	10	130o	0,25	M6X1,0	3
8380505	12	100o	0,5	M6X1,0	2
8380506	12	100o	0,5	M6X1,0	3
8380507	12	130o	0,5	M6X1,0	2
8380508	12	130o	0,5	M6X1,0	3
8380509	14	100o	0,5	M8X1,0	2
8380510	14	100o	0,5	M8X1,0	3
8380511	14	130o	0,5	M8X1,0	2
8380512	14	130o	0,5	M8X1,0	3
8380513	17	100o	0,75	M8X1,0	2
8380514	17	100o	0,75	M8X1,0	3
8380515	17	130o	0,75	M8X1,0	2
8380516	17	130o	0,75	M8X1,0	3
8380517	19	100o	0,75	M8X1,0	2
8380518	19	100o	0,75	M8X1,0	3
8380519	19	130o	0,75	M8X1,0	2
8380520	19	130o	0,75	M8X1,0	3
8380521	22	100o	1	M8X1,0	2
8380522	22	100o	1	M8X1,0	3
8380523	22	130o	1	M8X1,0	2
8380524	22	130o	1	M8X1,0	3
8380525	25	100o	0,25	M8X1,0	2
8380526	25	100o	0,25	M8X1,0	3
8380527	25	130o	0,25	M8X1,0	2
8380528	25	130o	0,25	M8X1,0	3

Info about this tool

PCD countersink with integral pilot.

Series developed in HD PCD with 2 or 3 cutting edges, ideal for achieving high productivity in countersinking cycles of materials such as:

– Carbon fiber.

– Fiberglass (G10, G11, etc) and other composite materials.

– Aluminum and other non-ferrous metals.
