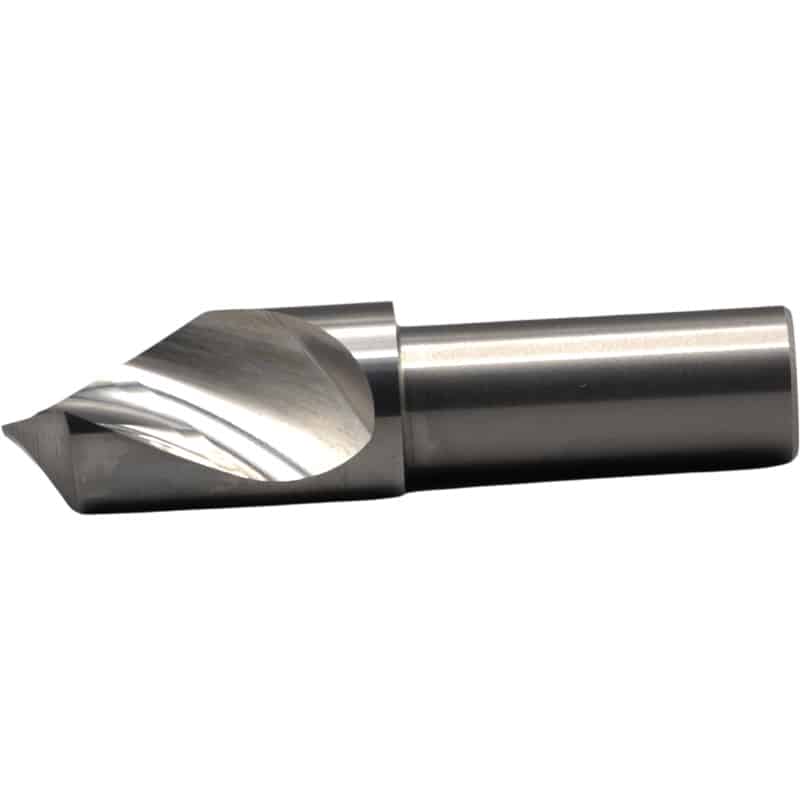

ALU H-Folder

Name: ALU H-Folder - GRT Tools
SKU: 41625
Availability: InStock

Details

Serie: 41625

Composition:

Solid carbide

Helix:

n/a

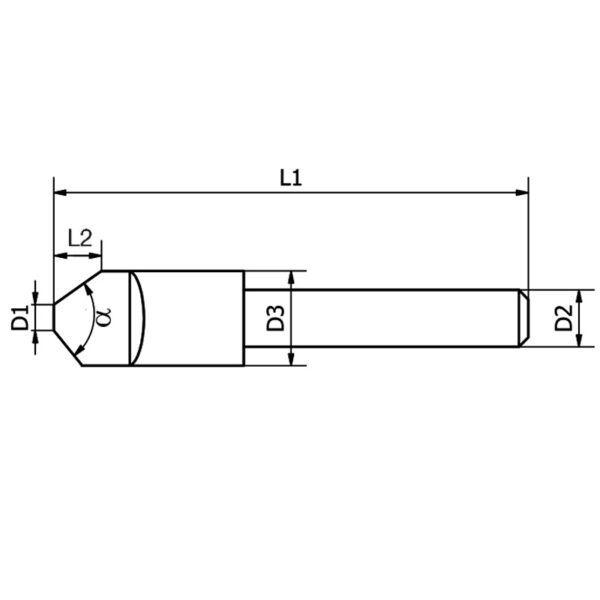

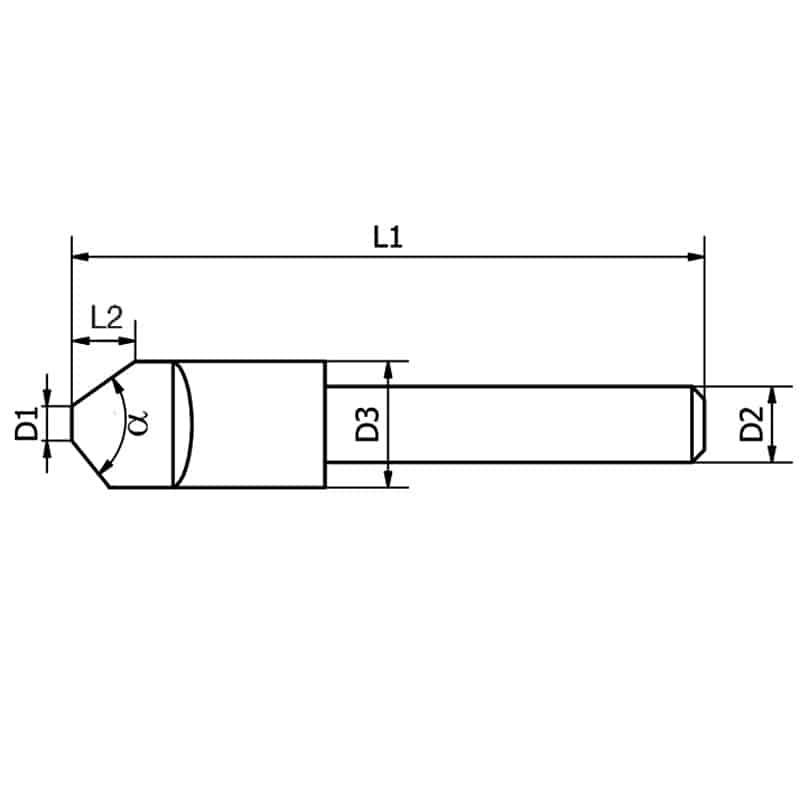

Ref.	D1 mm	D3 mm	L2 mm	L1 mm	α	Z	D2 mm
4162501	2	10	5	60	95o	1	6
4162503	3	10	5	60	95o	1	10
4162504	2	10	5	60	90o	1	6
4162505	3	12	5	60	95o	1	12

Carbide milling cutter for 90º and 95º bending

Innovative geometry developed to reduce cutting forces and facilitate chip ejection.

Finely balanced series, suitable for high-speed use and specially designed for grooving, chamfering and bending under high feed conditions:

– Aluminum composites: Dibond®, Alucobond®, etc.

– Aluminum and other non-ferrous metals.
