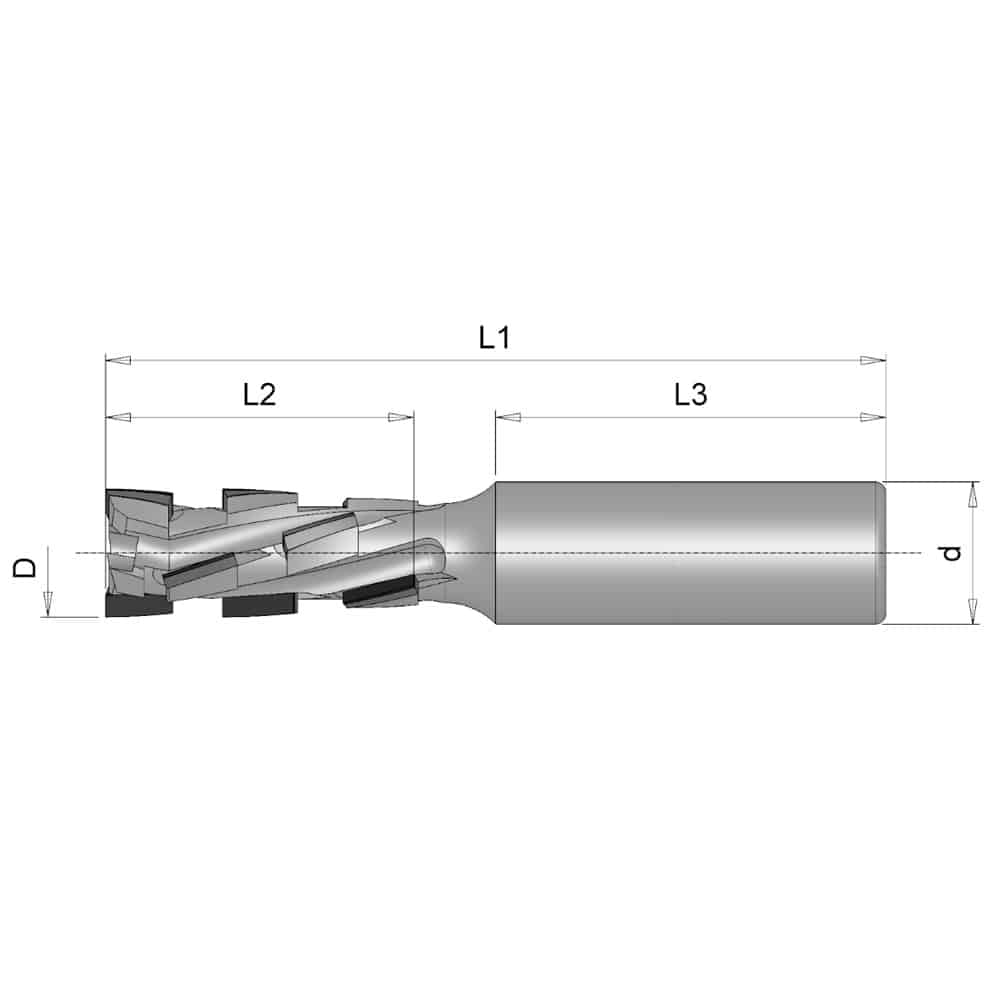

| Ref. | D1 mm | L2 mm | L1 mm | Z | D2 mm |
|---|---|---|---|---|---|
|
*8370603
|
12
|
25
|
75
|
2+2
|
12
|
|
8370601
|
10
|
25,4
|
75
|
1+1
|
12
|
|
8370602
|
12
|
24
|
70
|
2+2
|
12
|
|
8370604
|
16
|
35
|
90
|
2+2(7)
|
16
|
|
8370605
|
18
|
43
|
110
|
2+2
|
25
|

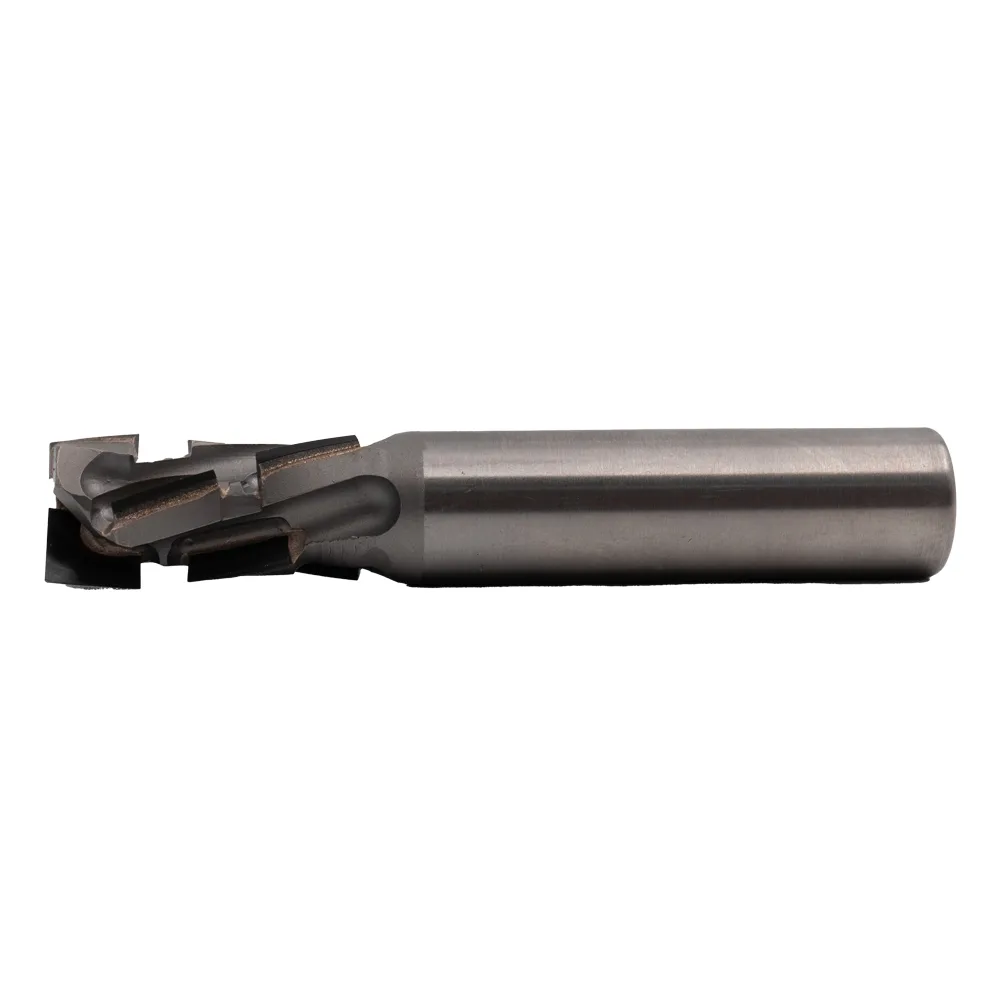

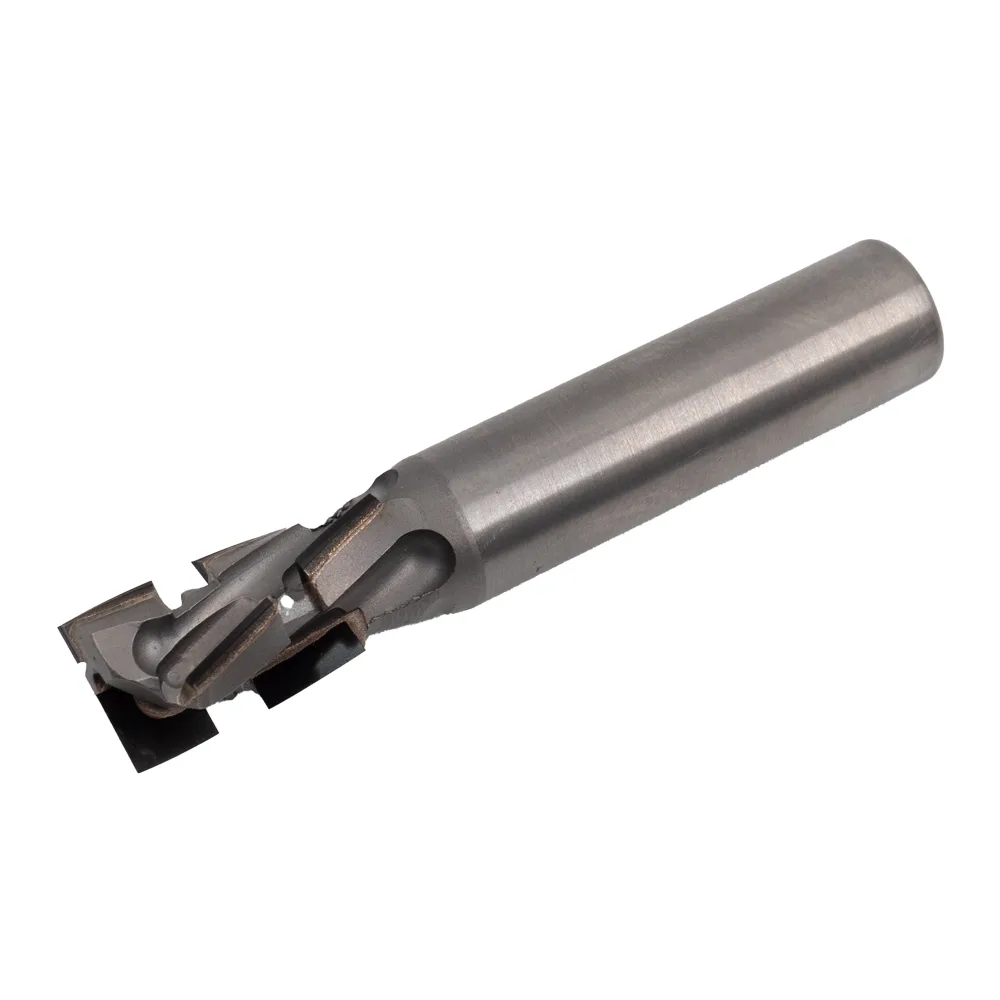

Segmented multi-flute PCD end mill
End mill with a compression-style design created by segmented cutting edges equipped with HD PCD inserts.
Its geometry is engineered to reduce cutting forces, enabling high-feed machining on nesting CNC routers.
Recommended for achieving maximum productivity and superior edge quality on:
– Melamine-coated particleboard,…
– High-gloss panels, aluminium-faced panels, high-pressure laminates (HPL, Trespa®, Formica®), Bakelite, GFRP, CFRP, and other advanced composite materials.
