Compact Pro Max

Name: Compact Pro Max - GRT Tools
SKU: 83795
Availability: InStock

Details

Serie: 83795

Composition:

Polycrystalline diamond

Helix:

Right or Upcut

Machinable material:

Composite Wood

You must be a registered user to view prices and make purchases. Register here

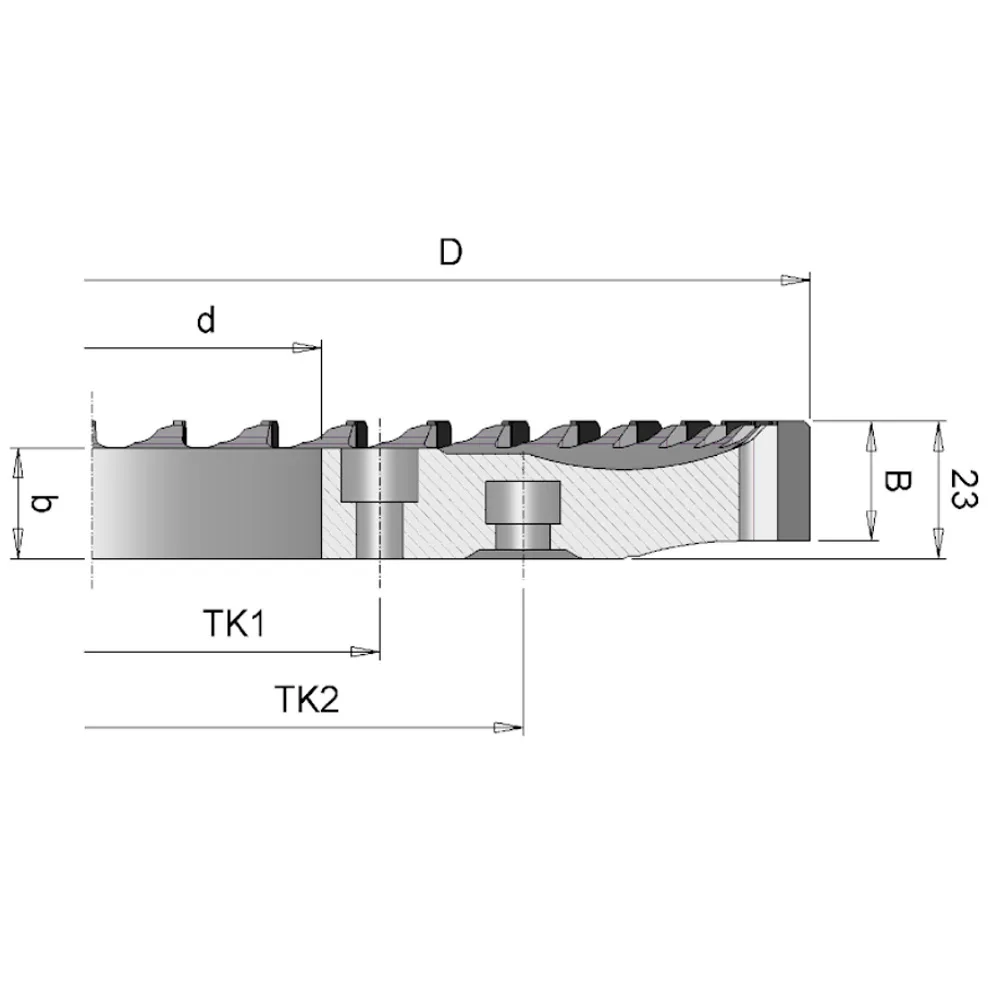

Ref.	D mm	B mm	d mm	Z	b mm
8379501	220	11,5	80	30+6	22
8379502	220	11,5	80	36+6	22
8379503	220	11,5	80	42+6	22
8379504	220	11,5	80	48+6	22
8379505	220	20	80	30+6+6	22
8379506	220	20	80	36+6+6	22
8379507	220	20	80	42+6+6	22
8379508	220	20	80	48+6+6	22
8379509	250	11,5	80	30+6	22
8379510	250	11,5	80	36+6	22
8379511	250	11,5	80	42+6	22
8379512	250	11,5	80	48+6	22
8379513	250	11,5	80	60+6	22
8379514	250	20	80	30+6+6	22
8379515	250	20	80	36+6+6	22
8379516	250	20	80	42+6+6	22
8379517	250	20	80	48+6+6	22
8379518	250	20	80	60+6+6	22

Info about this tool

Compact multi-flute PCD end mill

New series featuring an innovative “Axial Compact” design, developed to reduce cutting forces and noise emission while ensuring perfect chip evacuation.

Designed to achieve superior finishes and exponentially increase productivity on materials such as:

– MDF, melamine chipboard, plywood, etc.

– High-gloss finish panels, panels with aluminum top layers, high pressure laminates (HPL, Trespa®, Formica®), Bakelite, GFRP, CFRP, etc.
