RafTec Compression

RafTec Compression

Details

Serie: 83705

Composition:

Solid carbide

Helix:

Compression

Machinable material:

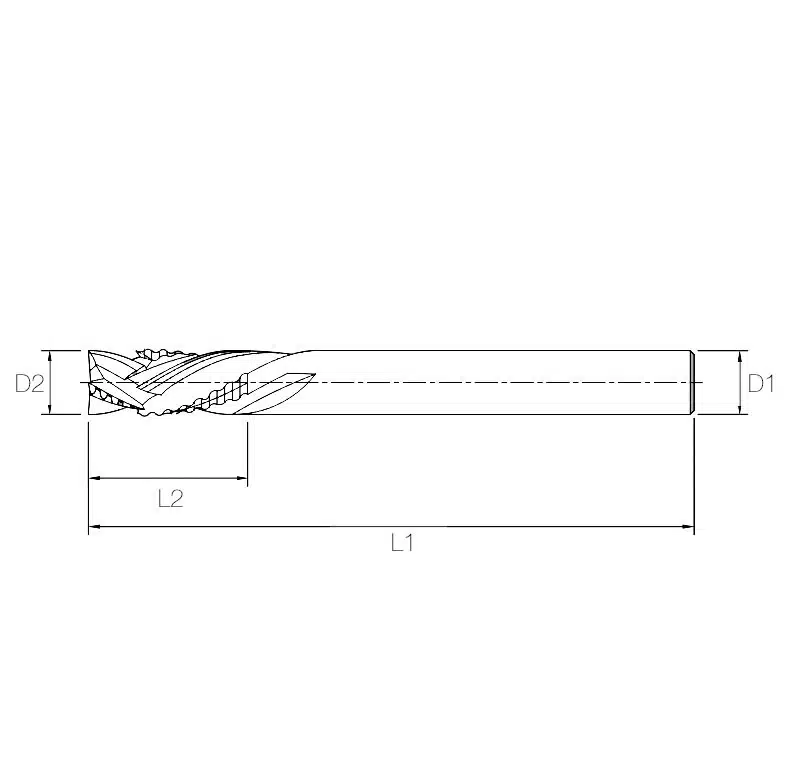

Ref. D1 mm L2 mm L1 mm Z D2 mm
8370501
6
22
64
3+3
6
8370502
8
25
70
4+4
8

Info about this tool

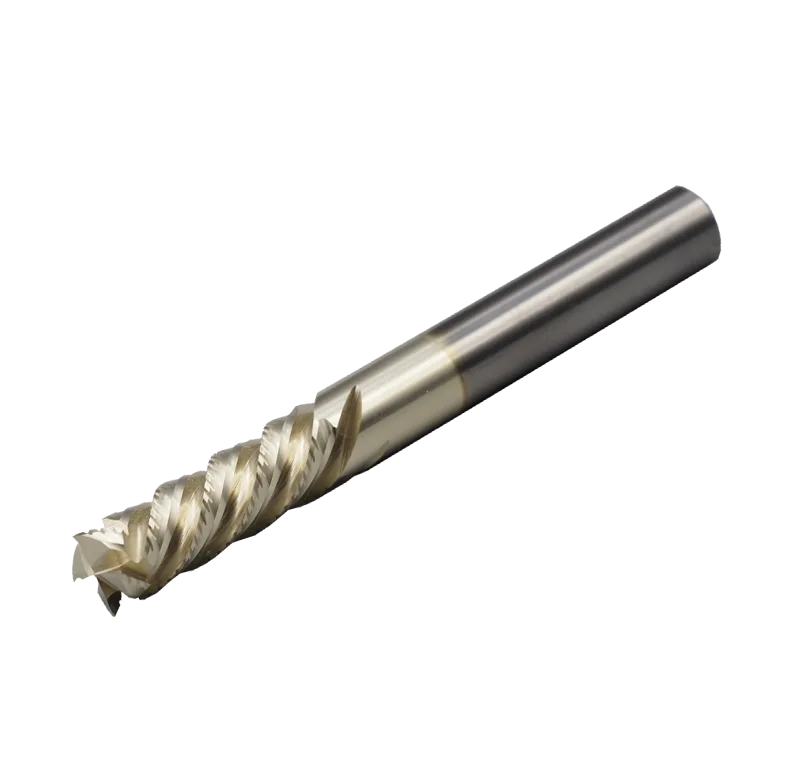

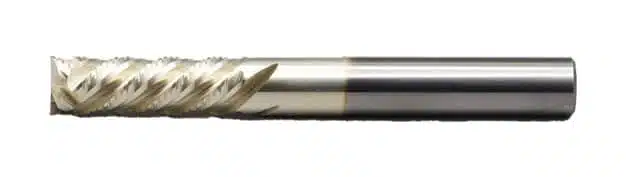

Micro serrated compression carbide end mill New series specially designed for cutting sandwich materials with a cell or honeycomb core. Its compression geometry generates a burr-free finish on the upper and lower part of the cut, and the innovative micro-serrated helix design allows the perfect milling and prevents the detachment or “flagging effect” that takes place in the center of these materials when they are machined. Indicated for cutting:

  • Panels and graphic supports such as: Falcon Board®, BioBoardTM, Reboard® or other similar Honeycomb boards.
  • Aluminum Honeycomb panels.
  • Sandwich panels with reinforced cores (Nomex®).
  • Cellular Polycarbonate.
